Nike Mk7 Rebuild


Click to enlarge
Before


Click to enlarge
Damaged tubes removed


Click to enlarge
Rebuild centre section


Click to enlarge
Rebuild rear section


Click to enlarge
Rebuild rear section


Click to enlarge
CAD drawing of front wheel/upright


Click to enlarge
New Roll Hoop


Click to enlarge
New Roll Hoop


Click to enlarge
New Roll Hoop and diagonal


Click to enlarge
New Roll Hoop and lower rear stays

ZX12R engine with sump removed
Click to enlarge
ZX12R Sump removed

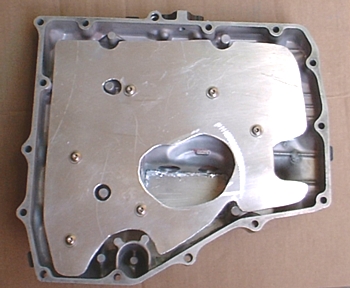

Sump baffle plate
Click to enlarge
Sump baffle plate

ZX12R chopped sump
Click to enlarge
ZX12R Chopped Sump

ZX12R chopped sump
Click to enlarge
ZX12R Chopped Sump


Click to enlarge
Engine installed


Click to enlarge
Bulkhead


Click to enlarge
Differential Position


Click to enlarge
Removable stays


Click to enlarge
Exhaust Manifold


Click to enlarge
Exhaust & Differential


Click to enlarge
Fuel Tank


Click to enlarge
Electric Reverse Motor


Click to enlarge
Electric Reverse


Click to enlarge
Electric Reverse Motor
